TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel

China TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel supplier
TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel supplier TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel supplier TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel supplier TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel supplier

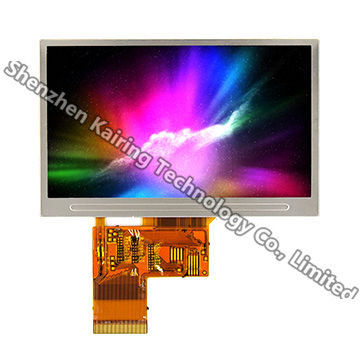

Large Image :  TFT 4.3Inch Module 300Luminance 40Pins Interface with Resolution 480*272 Stainless Steel

Product Details:

Place of Origin: China
Brand Name: Kairing
Certification: RoHS & REACH
Model Number: KYT0430-A05

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD, HKD, or others
Packaging Details: Standard
Payment Terms: T/T
Supply Ability: 200K/month
Contact Now
Detailed Product Description

KYT0430-A05 4.3inch TFT Deatailed Specification

Screen Size 4.3inch
Resolution 480x3 RGB x272
Module Size 105.5(W) x 67.0(H)x 3.0(D) mm
Active Area 95.04(H)x53.856(V)
Interface 40Pins, 8/24-bits RGB
Brightness 300cd
Frame Stainless Steel
Display Type Normally White,Transmissive
Driver element a-Si TFT active matrix
Surface treatment Anti-Glare
Touch Panel Option
