Place of Origin: | China |
Brand Name: | Kairing |
Certification: | RoHS & REACH |
Model Number: | KDH5660 |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD, HKD, or others |
Packaging Details: | Standard Package |
Delivery Time: | 25days |
Supply Ability: | 500K / month |
Material: | LCD, Glass | Type: | HTN ,Segment,Customer 7 Segments LCD |
---|---|---|---|
Display Mode: | Positive, Transmissive,Cutomized | Operating Temperature: | -20~80 |
Application: | Infrared Themometer,Office Electronic Equipment, Instrument Meter, Household Appliances, Flow Meter | Connector: | PIN, Or Zebra(Metal Pin) |

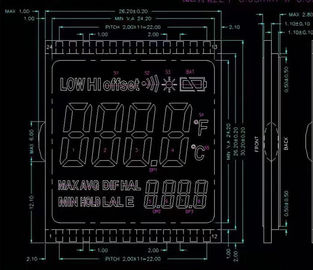

Storage Temperature: | -30~80 | Size: | 0.3~19inch,27.0*25.0mm,26*30.2mm ,Customized |
Backlight: | Red, Yellow,Green,Option With Backlight, | Viewing Angle: | 12 O'clock, 6 O'Clock |
Product Name: | LCD Display Screen, HTN LCD,Digit Segment LCD, | Polarizer Mode: | Transmissive, Refective, Transflective, Or Negative |
Operating Voltage: | -20~70 | Drive Method: | 3.0VC 5.0V,Customized |

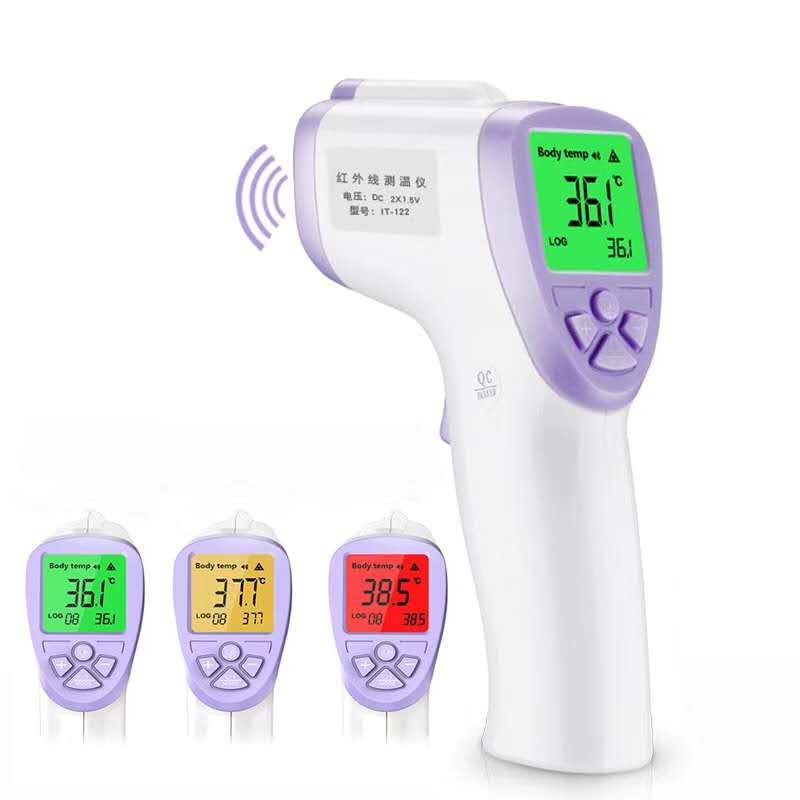

Infrafed Themometer Using LCD Detail
LCD Type | HTN, |
Dots | Segments |

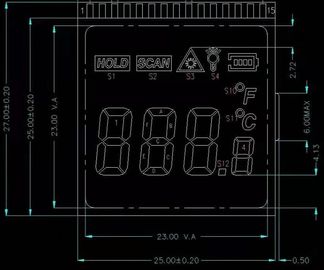

Module Size | 27.0*25.0*2.8mm |
Active Area | 25.0*23.0mm |
Oper. Temp. | -20 ~ 70C |
Storage. Temp. | -30 ~ 80C |
Viewing Angle | 6:00 |
Drive Voltage | VDD+3.3V |
Drive Method | 1/4Duty, 1/3Bias |
Backlight | Option |
Interface | PIN, Zebra |
