| Place of Origin: | china |
| Brand Name: | kairing |
| Certification: | RoHs & Reach |
| Model Number: | KMB1602W |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD.HKD or other |
| Packaging Details: | standard package |
| Delivery Time: | 25 -30days |
| Supply Ability: | 100K/month |

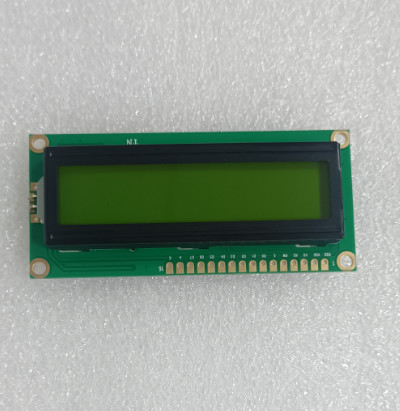

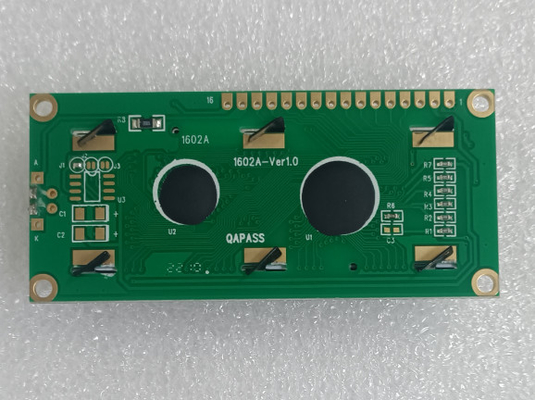

STN LCD Detailed Specification
| LCD Type | STN, Positive, Transmissive,yellow-green |
| Dots | Dots |
| Module Size5 | 80.0*36.0*11.1mm |
| Active Area | 55.7.0*11.0mm |
| Oper. Temp. | -10 ~ 60C |
| Storage. Temp. | -20 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VOP= 5.0V |
| Drive Method | 1/16Duty, 1/4Bias |
| Backlight | Yellow-green |
| Interface | Zebra |
